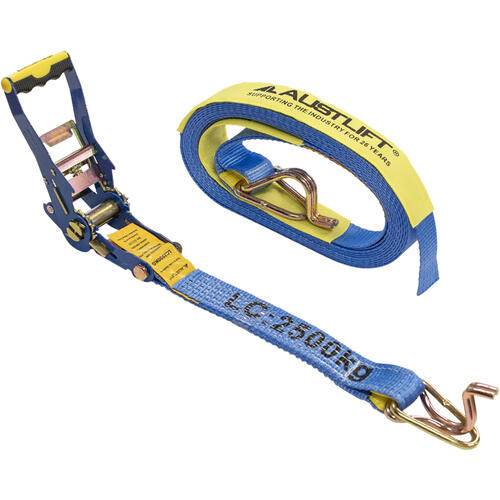

Austlift Ratchet Strap Ergo Hook & Keeper LC2500kg

The Austlift Ratchet Strap Ergo is a heavy-duty load restraint solution designed to reduce operator strain while delivering reliable, compliant load control.

Also known as a Reverse Action or Pull-Down Ratchet, this strap allows the operator to use body weight when tensioning, significantly reducing wrist and shoulder strain compared to traditional push-up ratchets. The ergonomic short-handle design achieves higher pre-tension with less effort, improving both safety and efficiency.

Manufactured with a robust 50mm steel ratchet body and high-strength, UV-resistant polyester webbing, this ratchet strap is ideal for demanding transport and industrial environments. Hook & Keeper end fittings are supplied as standard, ensuring secure attachment during transit.

Fully compliant with AS/NZS 4380 and Load Restraint Code of Practice, this ratchet strap is suitable for professional freight, construction, mining, and logistics applications.

Key features

• Reverse action (pull-down) ergonomic ratchet design
• Uses body weight to reduce wrist and shoulder strain
• Achievable pre-tension of 400–500kgf (ERGO pull-down handle)
• Standard push-up ratchets typically achieve only 300–350kgf
• Heavy-duty 50mm steel ratchet body with corrosion-resistant finish
• Positive double-pawl locking system for controlled release
• Smooth webbing take-up and secure load holding
• Batch traceable with lot ID
• 50mm high-strength UV-resistant polyester webbing
• Hook & Keeper end fittings supplied as standard
• Includes two corner wear protectors for added durability
• AS/NZS 4380 compliant and load restraint code compliant

Safe use & compliance

• Select a Load Capacity (LC) appropriate to the restraint plan
• Pre-tension (STF) is not equal to LC
• Use corner protection on sharp edges
• Avoid twists and knots in webbing
• Re-tension after load settlement
• Never use webbing straps for lifting
• Inspect ratchet and webbing before each use
• Remove from service if cuts, fraying, chemical damage, friction damage, or de-rating defects are present
