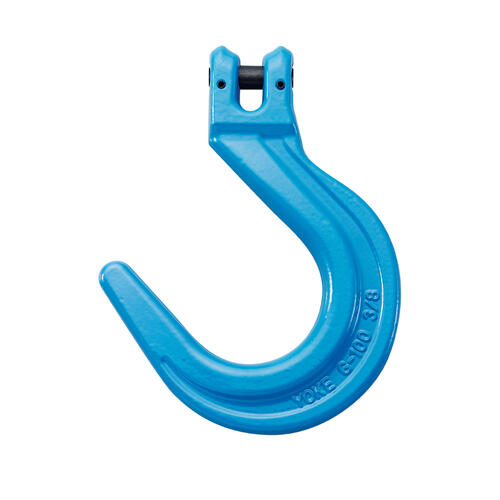

Yoke Clevis Type Foundry Hook – Grade 100

The Yoke Clevis Type Foundry Hook – Grade 100 is a heavy-duty lifting hook designed for high-temperature and foundry applications where wide throat openings are required. Manufactured from quenched and tempered alloy steel, this hook delivers superior strength and durability in demanding industrial environments.

This model features a clevis connection, making it suitable for direct attachment to chain assemblies. The 10mm Grade 100 version provides increased working load capacity compared to traditional Grade 80 fittings, ensuring reliable performance in heavy-duty lifting operations.

Engineered in accordance with international standards and fatigue rated for repeated loading cycles, this foundry hook is ideal for mining, construction, fabrication, and industrial lifting applications.

Key Features

• 10mm Grade 100 foundry hook – Clevis type
• Quenched and tempered alloy steel construction
• At least 25% higher WLL than Grade 80 products
• Wide throat opening for foundry and chain sling assemblies
• Design factor 4:1
• Proof load tested to 2.5 x WLL
• Fatigue rated to 20,000 cycles at 1.5 x WLL
• Certified to DGVU GS-OA-15-05
• Manufactured to DIN PAS 1061, ASTM A952/A952M & EN 1677-1
