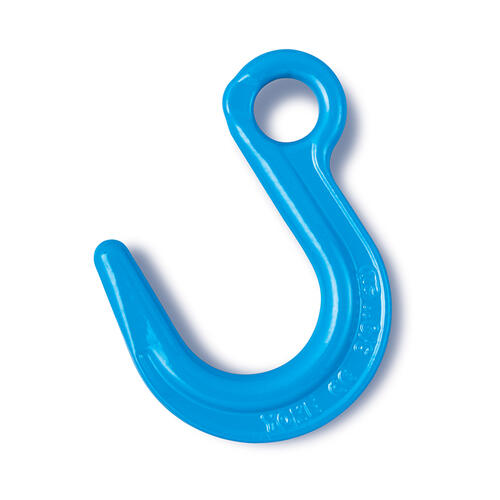

Yoke Eye Type Foundry Hook – Grade 100

The Yoke Eye Type Foundry Hook – Grade 100 (8mm) is engineered for heavy-duty lifting applications requiring a wide throat opening and high strength performance. Manufactured from quenched and tempered alloy steel, this hook delivers superior durability and a higher working load limit compared to traditional Grade 80 fittings.

Designed for chain sling assemblies and industrial lifting operations, the eye type configuration allows secure connection to master links and other rated lifting components. Proof load tested and fatigue rated for demanding environments, this hook is ideal for mining, construction, and heavy engineering applications.

Key Features

• Manufactured from quenched and tempered Grade 100 alloy steel
• At least 25% greater WLL than Grade 80 equivalents
• Designed for chain sling assemblies with wide throat opening
• Proof load tested to 2.5 × WLL
• Design factor 4:1
• Fatigue rated to 20,000 cycles at 1.5 × WLL
• Certified to DIN PAS 1061, ASTM A952/A952M and EN 1677-1
• DGUV GS-OA-15-05 certified
• Tempering temperature minimum 400°C
• Suitable for heavy industrial lifting applications
