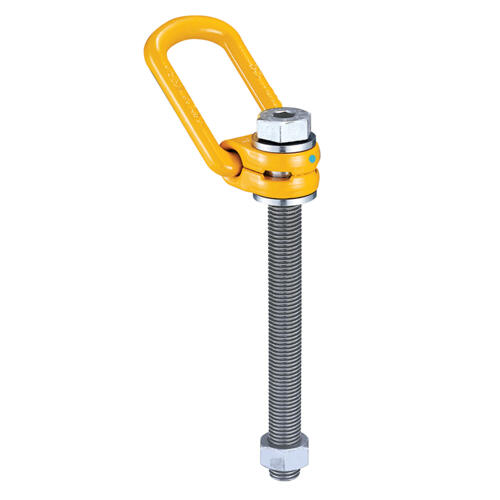

Yoke Swivel Lifting Point – Long Bolt

The Yoke Swivel Lifting Point – Long Bolt Type is a high-performance rotating lifting point designed for safe and secure load handling. Engineered from quenched and tempered alloy steel, this lifting point rotates 360° and pivots 90°, allowing full flexibility during lifting operations.

This long bolt configuration is ideal where deeper threaded engagement is required. Designed for heavy-duty industrial use, these lifting points meet international lifting standards and are proof load tested for reliability.

Available sizes in this listing:

• 12mm thread – 114mm thread length – WLL 1T
• 16mm thread – 149mm thread length – WLL 1.5T
• 20mm thread – 187mm thread length – WLL 2.5T
• 24mm thread – 221mm thread length – WLL 4T

Suitable for mining, construction, fabrication workshops, transport, and heavy engineering applications.

Key Features

• Rotates 360° and pivots 90°
• Manufactured from quenched and tempered alloy steel
• Long thread design for deeper mounting applications
• Proof tested to 2.5 times the WLL
• Fatigue rated to 1.5 times the WLL
• Metric thread (ASME / ANSI B18.3.1M)
• Meets or exceeds ASME B30.26 requirements
• Individual forged parts traceable to certification
• Quick and simple installation – requires tapped hole
