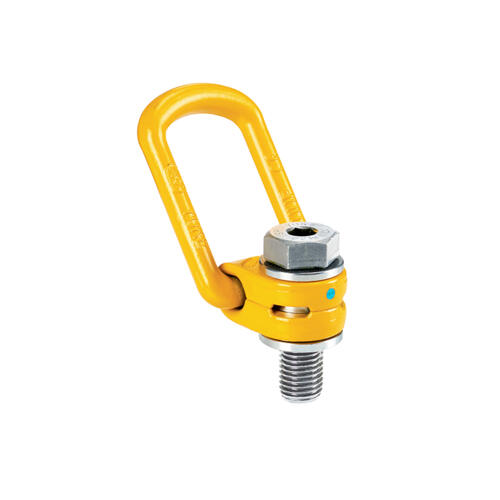

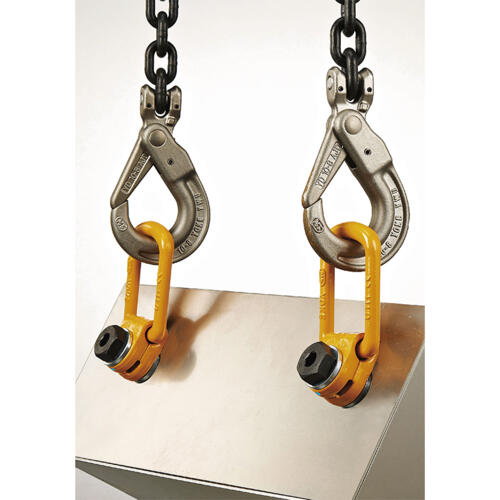

Yoke Swivel Lifting Point – Short Bolt

The Yoke Swivel Lifting Point – Short Bolt is a high-performance Grade 100 lifting attachment designed for safe and flexible lifting operations. Engineered to rotate 360° and pivot 90°, it allows optimal load alignment and reduces side loading risks during lifting.

Manufactured from quenched and tempered alloy steel, this lifting point is proof load tested to 2.5 times the Working Load Limit (WLL) and fatigue rated to 20,000 cycles at 1.5 times the WLL. It meets or exceeds ASME B30.26 requirements and is certified to EN1677-1 standards.

This short bolt version is ideal for applications where limited thread engagement depth is required.

Available sizes:

• 12mm thread – 18mm thread length – WLL 1T
• 16mm thread – 24mm thread length – WLL 1.5T

Key Features

• 360° rotation and 90° pivot movement
• Grade 100 quenched and tempered alloy steel
• Proof tested to 2.5 × WLL
• Fatigue rated to 20,000 cycles
• Load rated parts 100% crack detected
• Certified to EN1677-1
• Meets ASME B30.26 requirements
• Metric thread design
• Ideal for shallow threaded lifting points
